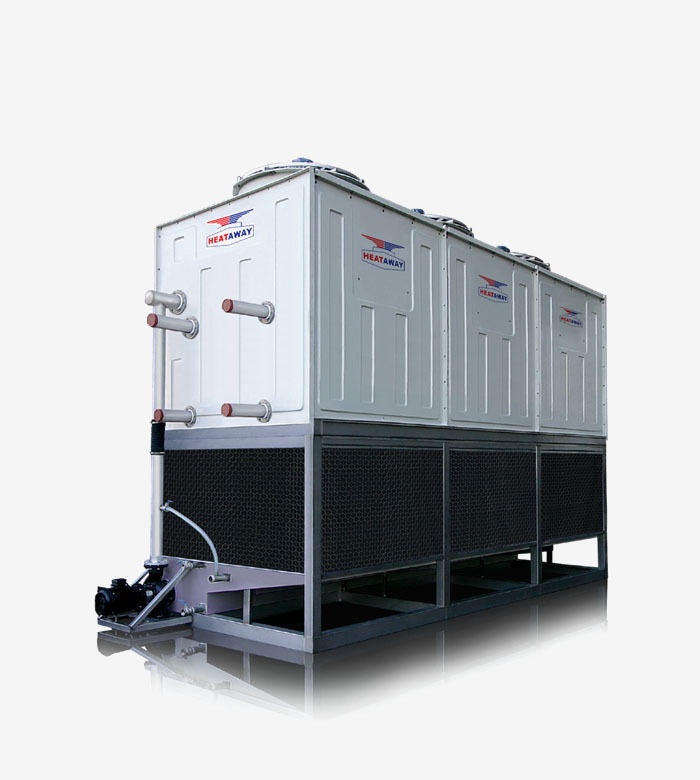

Stainless Steel Evaporative Condenser
ECS Series: Stainless Steel Casing |
ECF Series: Fiberglass Casing |

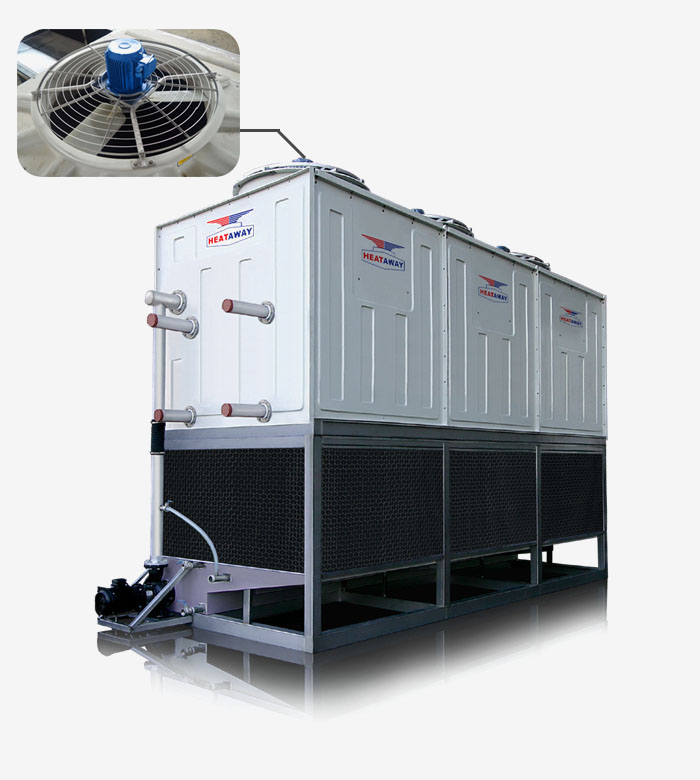

Fan set
- Fan motor : Induction motor IP55 with cast iron casing and epoxy coating
- Fan blade : Glass reinforced polyamide (PAG) operation of temperature range -40°C to 120°C
- Hub part : Pressure die cast silumin alloy with anti-corrosion coating
- Screener : Stainless steel 304

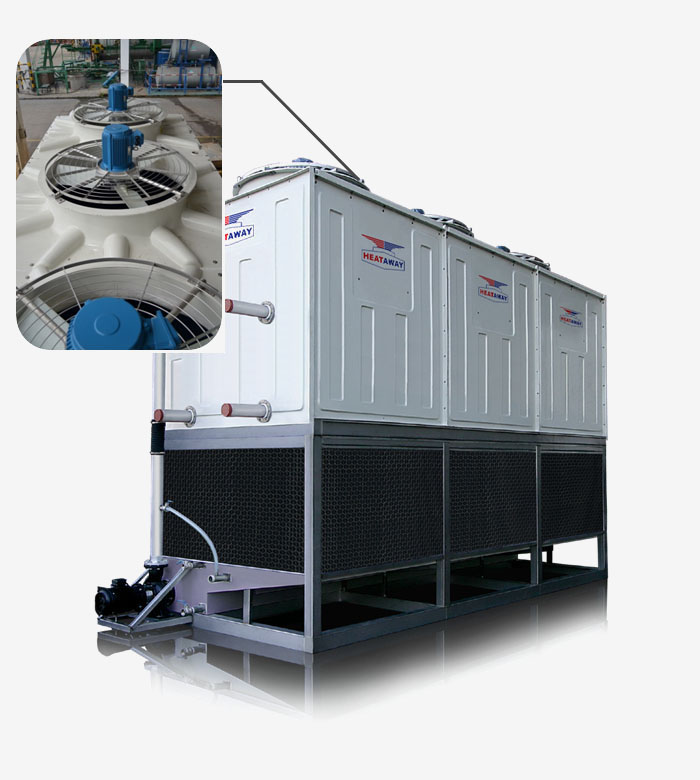

Fan cowl
- ECS series : Stainless steel 304
- ECF series : Fiberglass

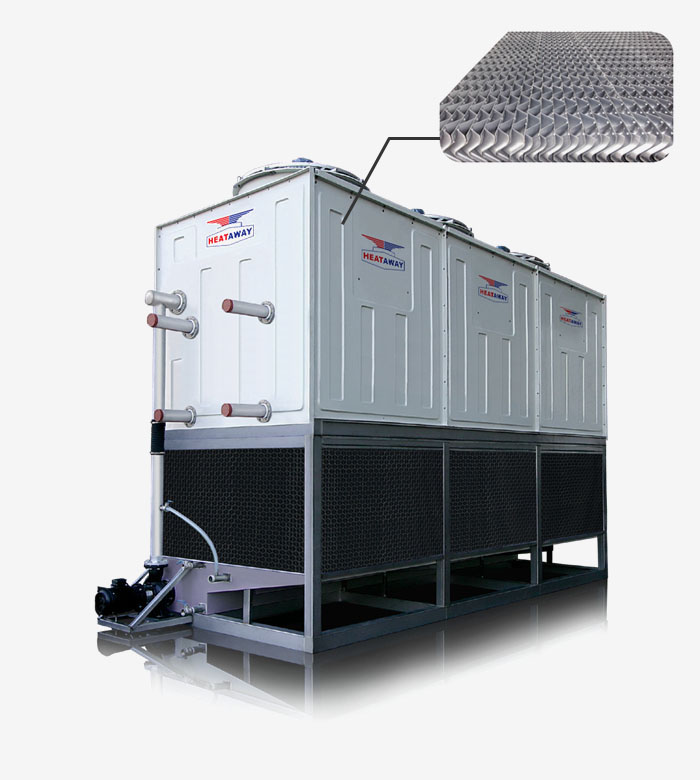

Drift eliminator
- PVC with UV protection
- Drift loss : 0.001%
- Max operating temperature : 60°C

Recirculated water pipe
uPVC

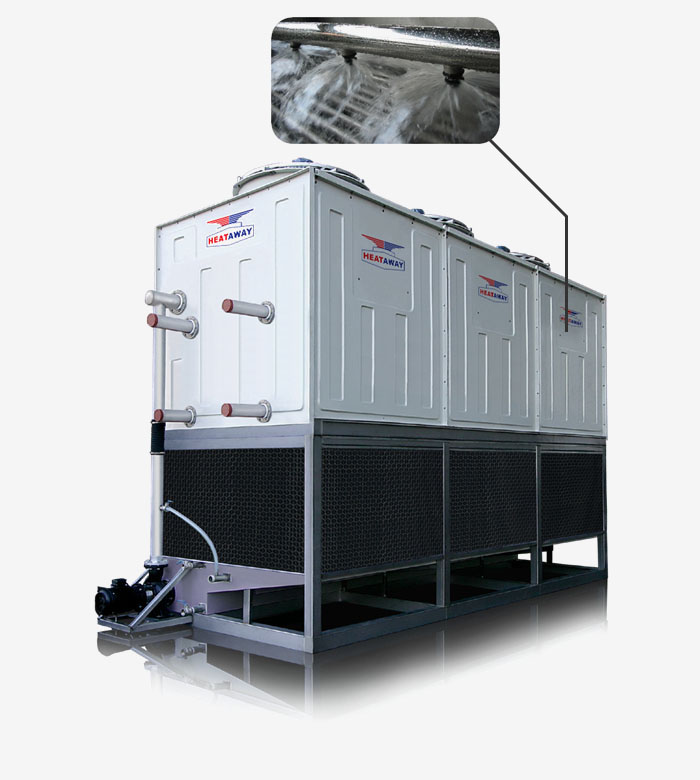

Spray nozzle
PVC with multi layer design by own patented

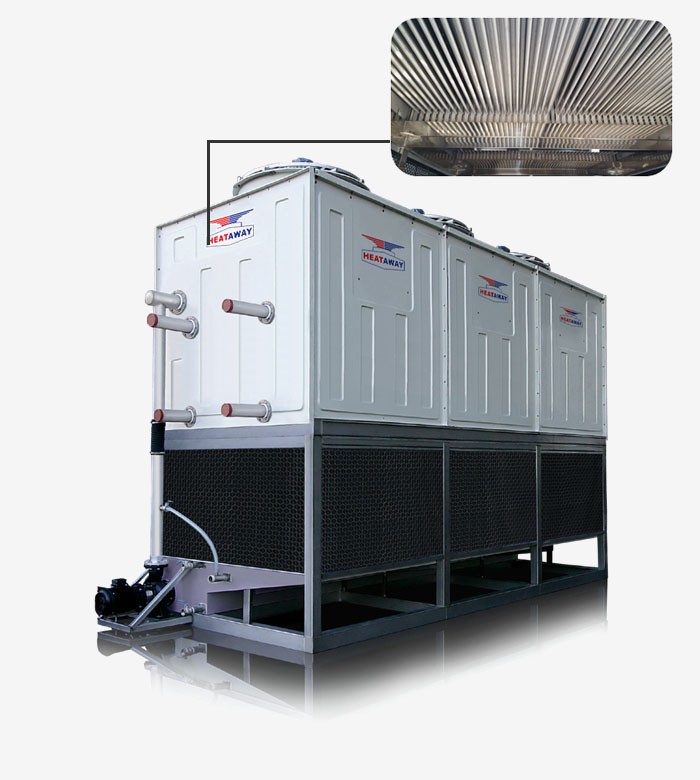

Condenser coil
Stainless steel 304

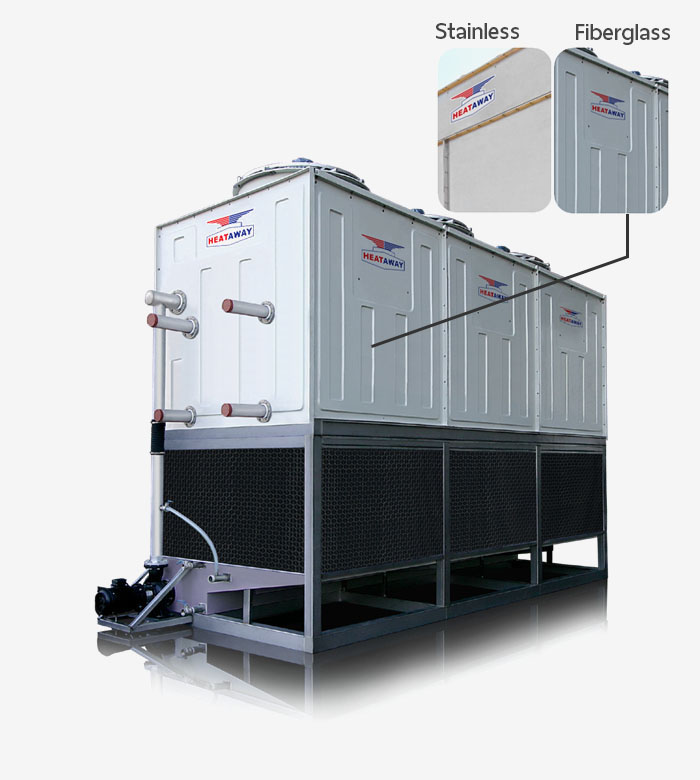

Casing
- ECS series : Stainless steel 304
- ECF series : Fiberglass

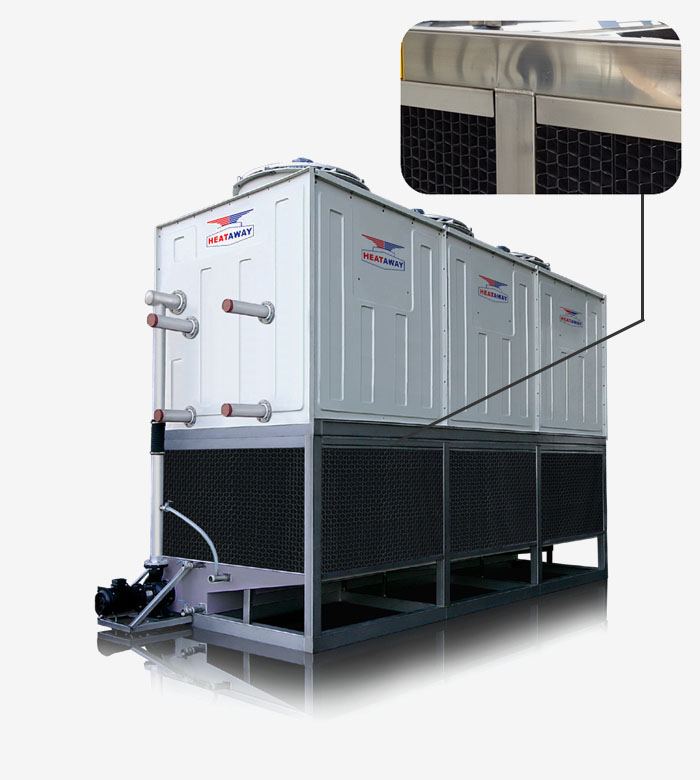

Structure
- Stainless steel 304
- Option : Additional special coating for maximize anti-corrosion

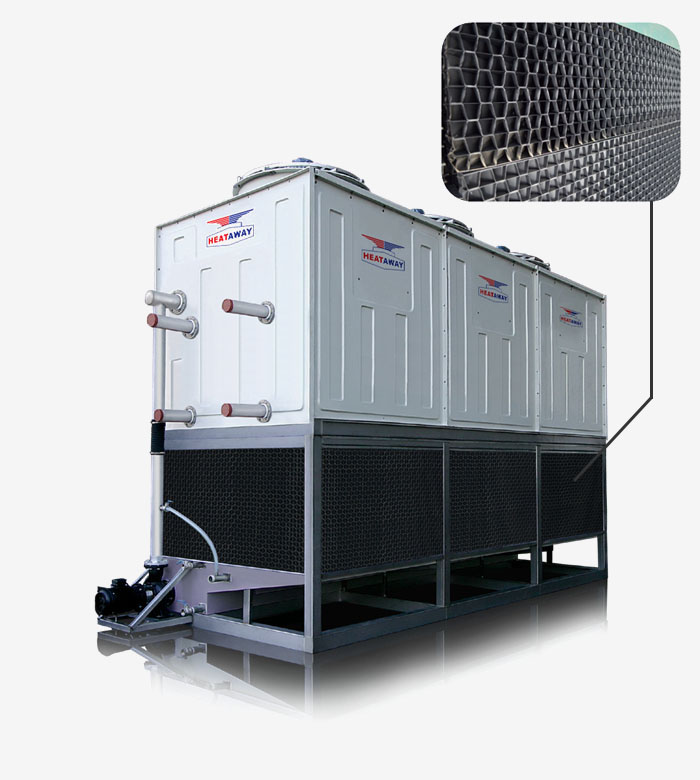

Louver
- PVC with UV protection
- Daylight protect 70 : 1
- Max operating temperature : 60°C
- Option : Double layer louver with stainless steel 304 and PVC

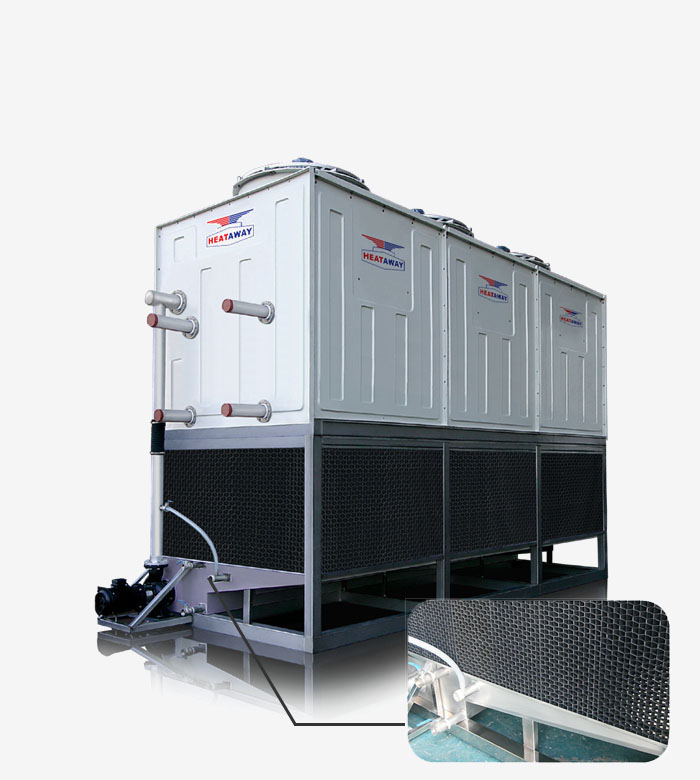

Basin
Stainless steel 304 or Fiberglass

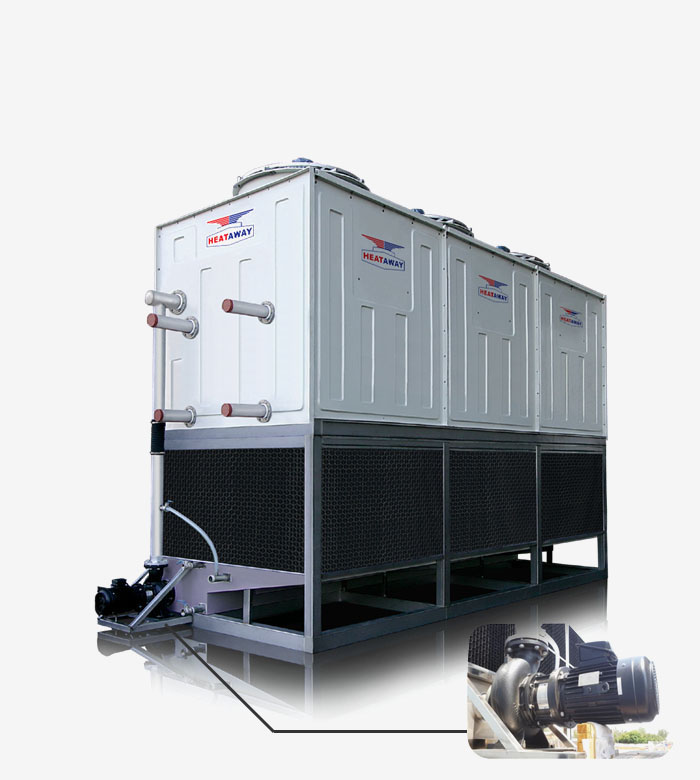

Recirculated water pump
- Water pump : Close-coupled centrifugal pump with cast iron casing and IP55
- Base support : Stainless steel 304
- Cover : Stainless steel 304
- Strainer : Stainless steel 304

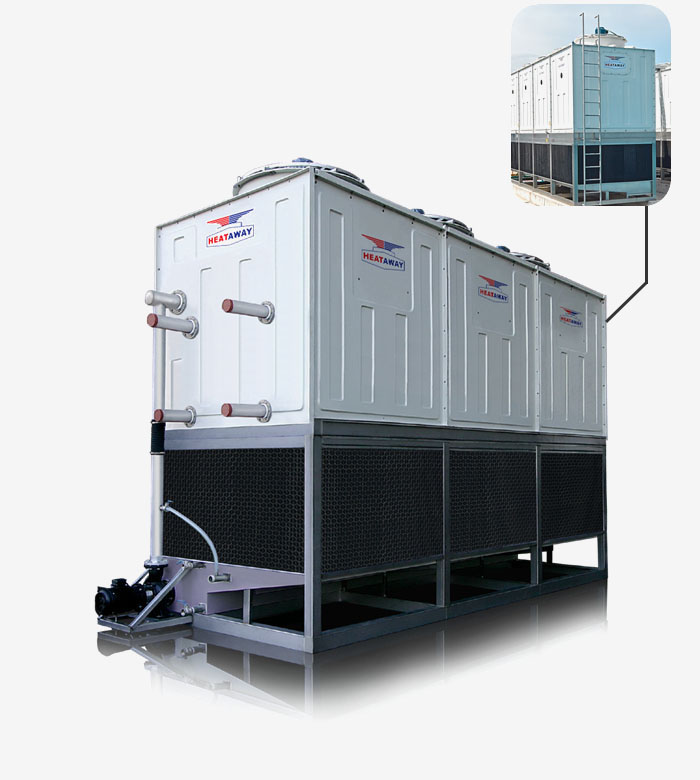

Ladder
- Stainless steel 304
- Option : Additional cage for fall protection
